特克斯太极坛改造


特克斯县城,亦称八卦城,根据《周易》“后天八卦”方位设计建成,面积约10平方公里,是世界唯一建筑正规、保存完整的“八卦城”。

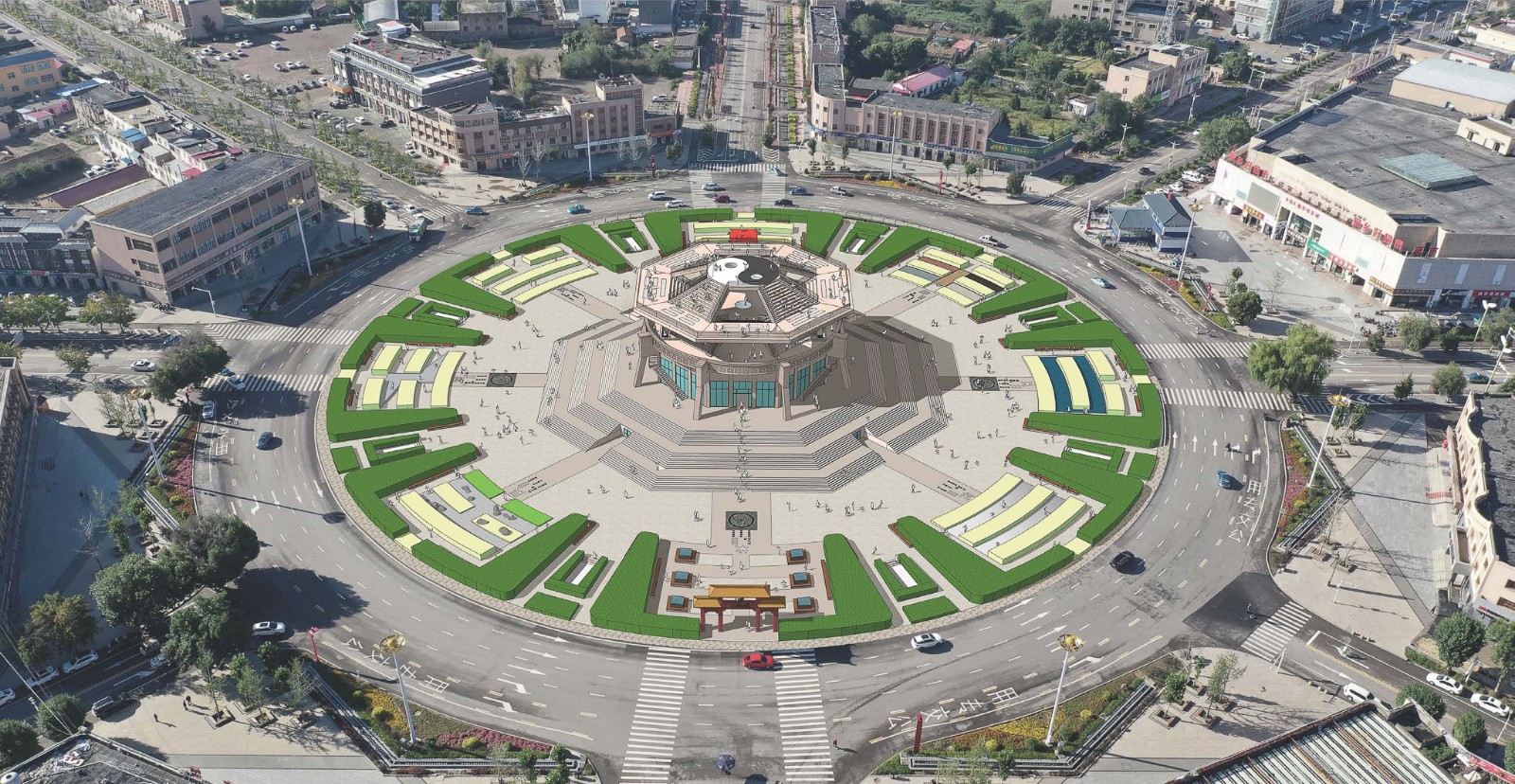

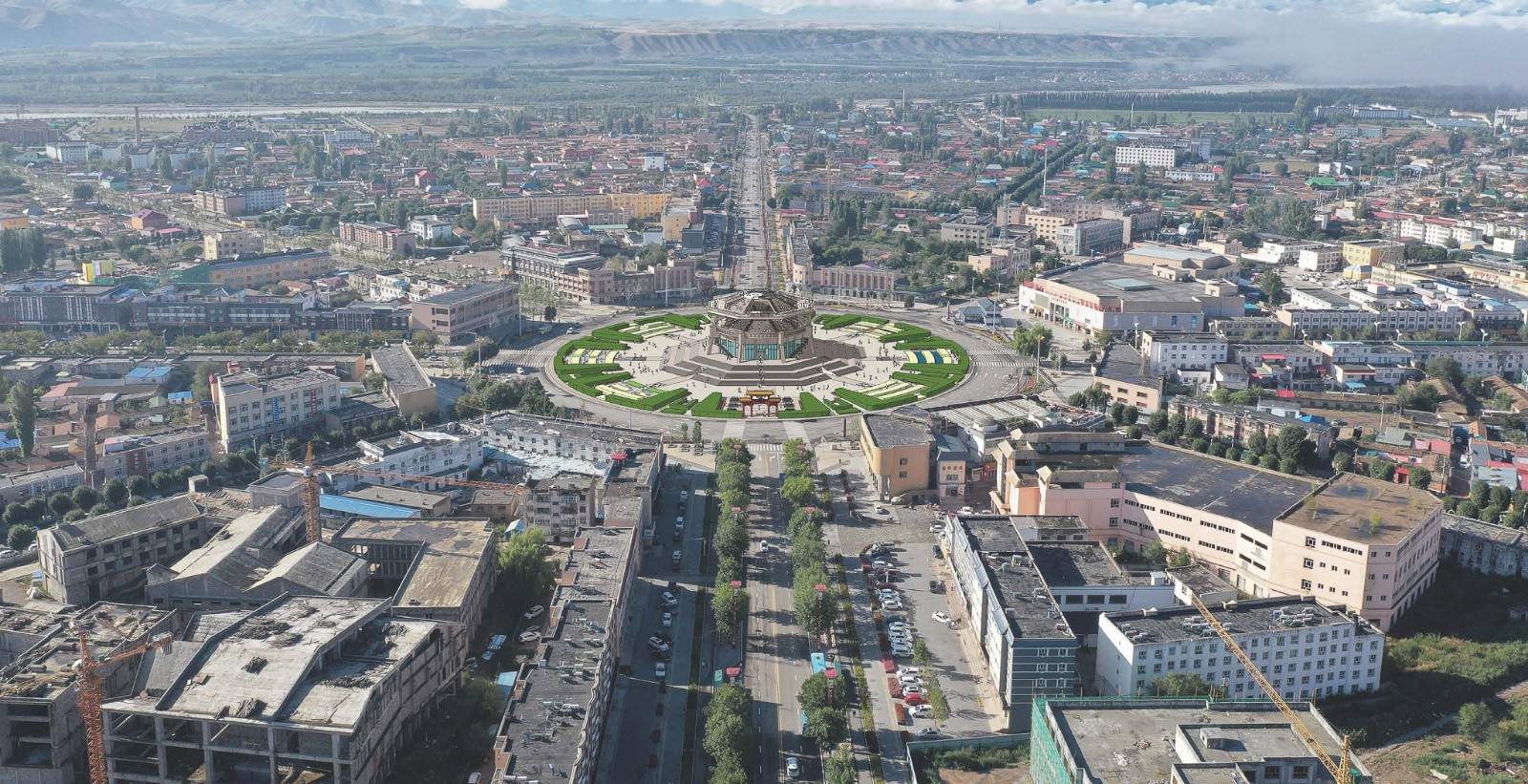

太极坛是县城的中心点,是核心公共空间,承载着对外传播本地文化,对内提供市民公共生活空间的重要功能。

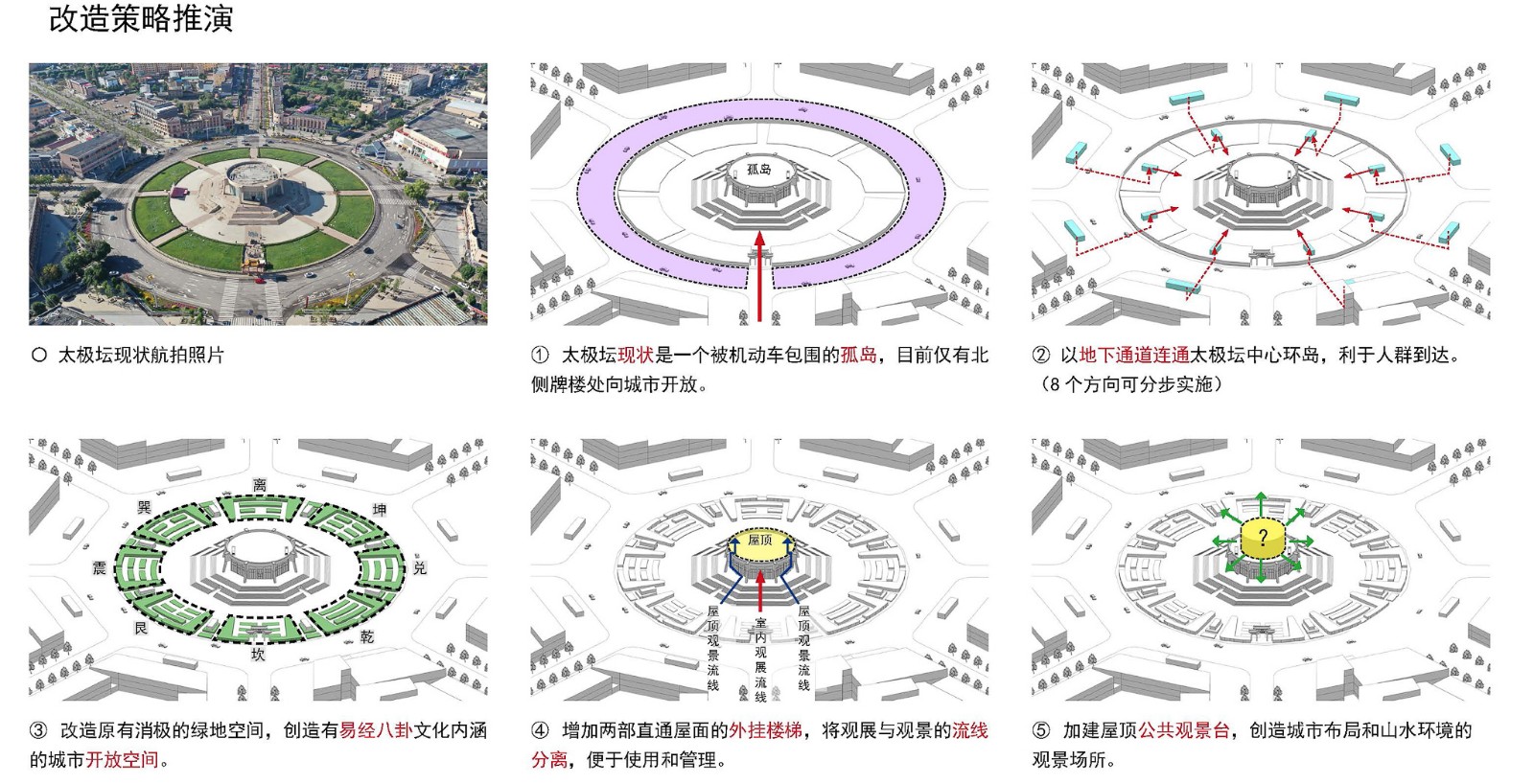

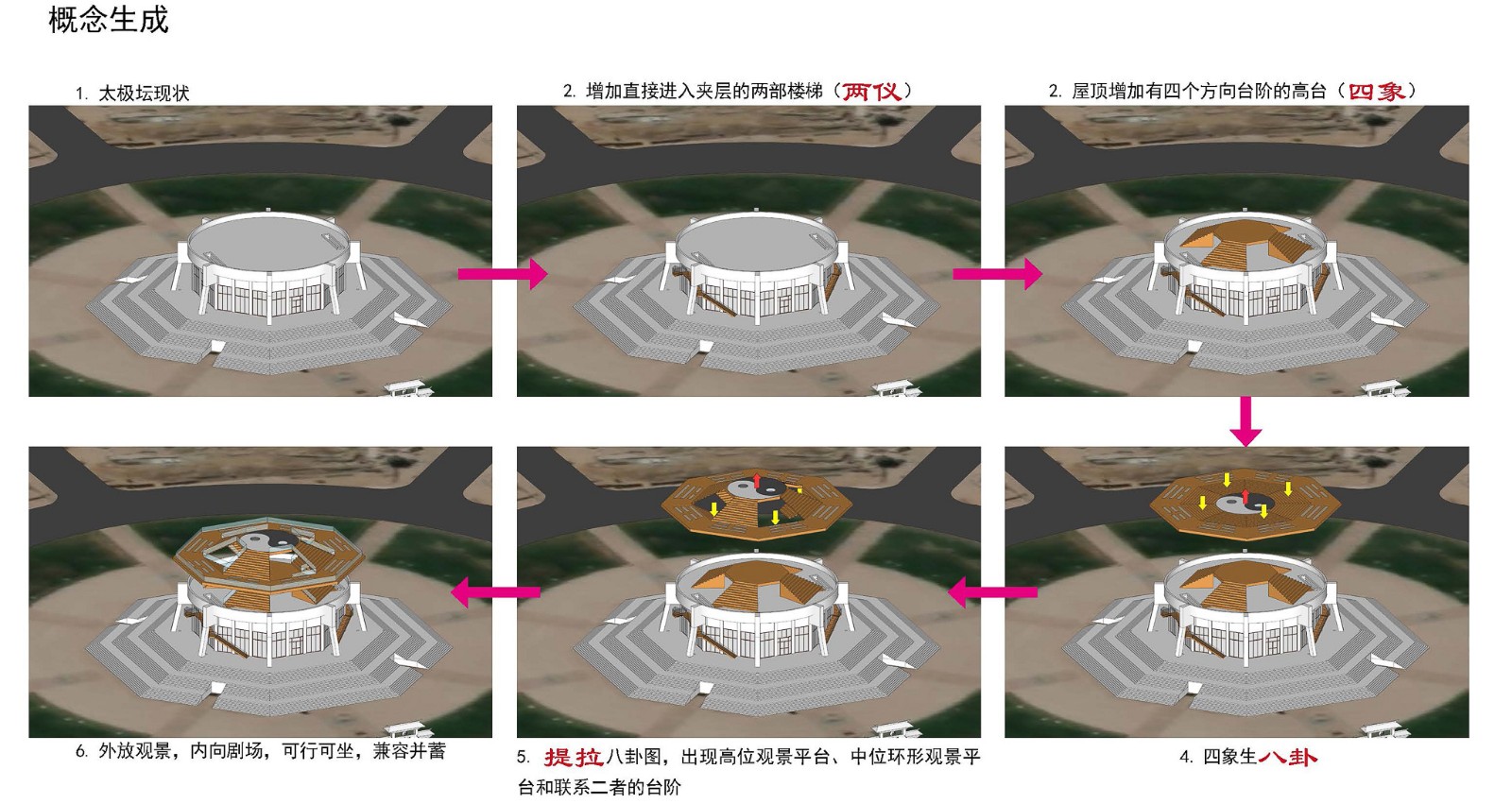

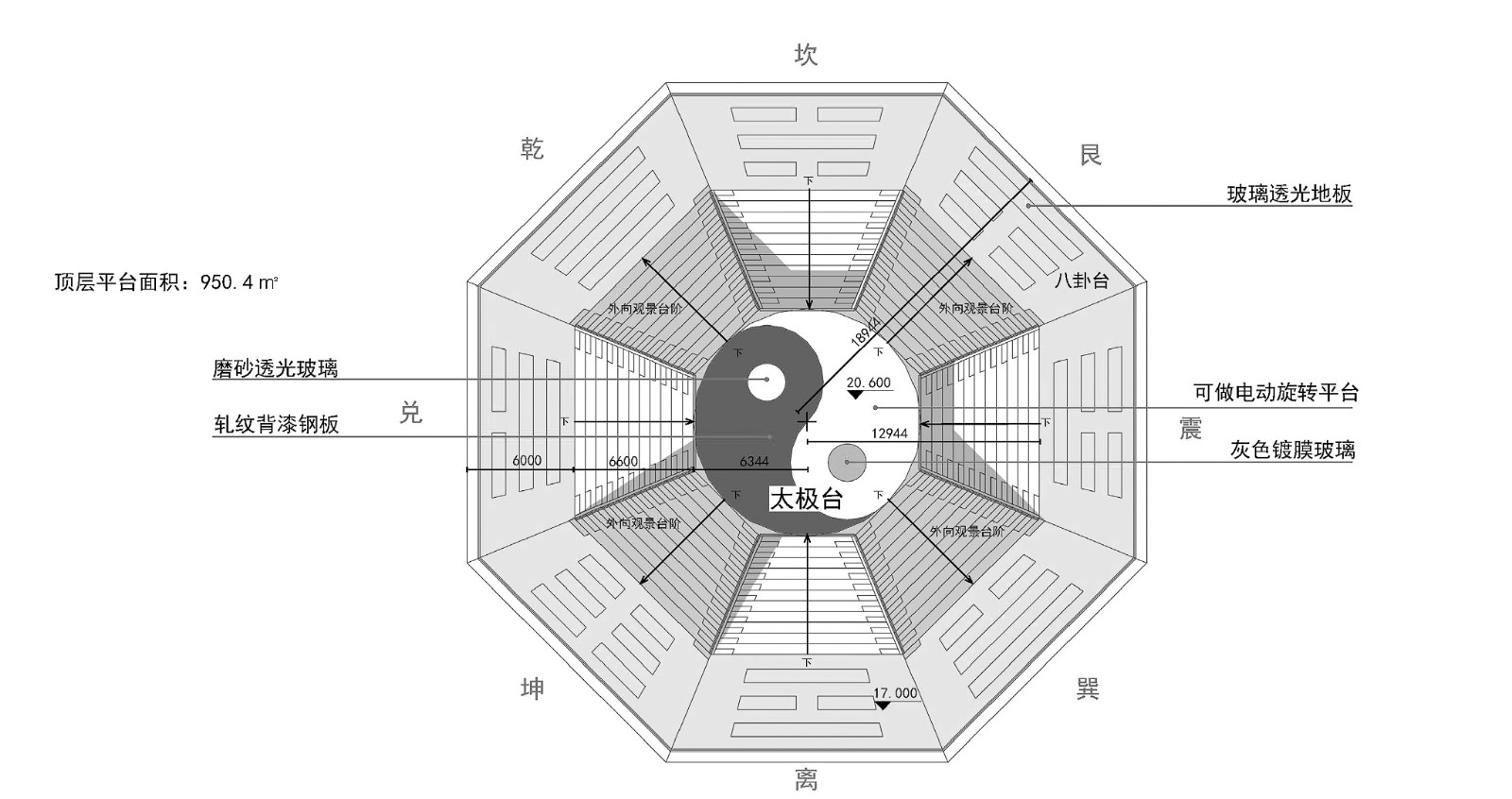

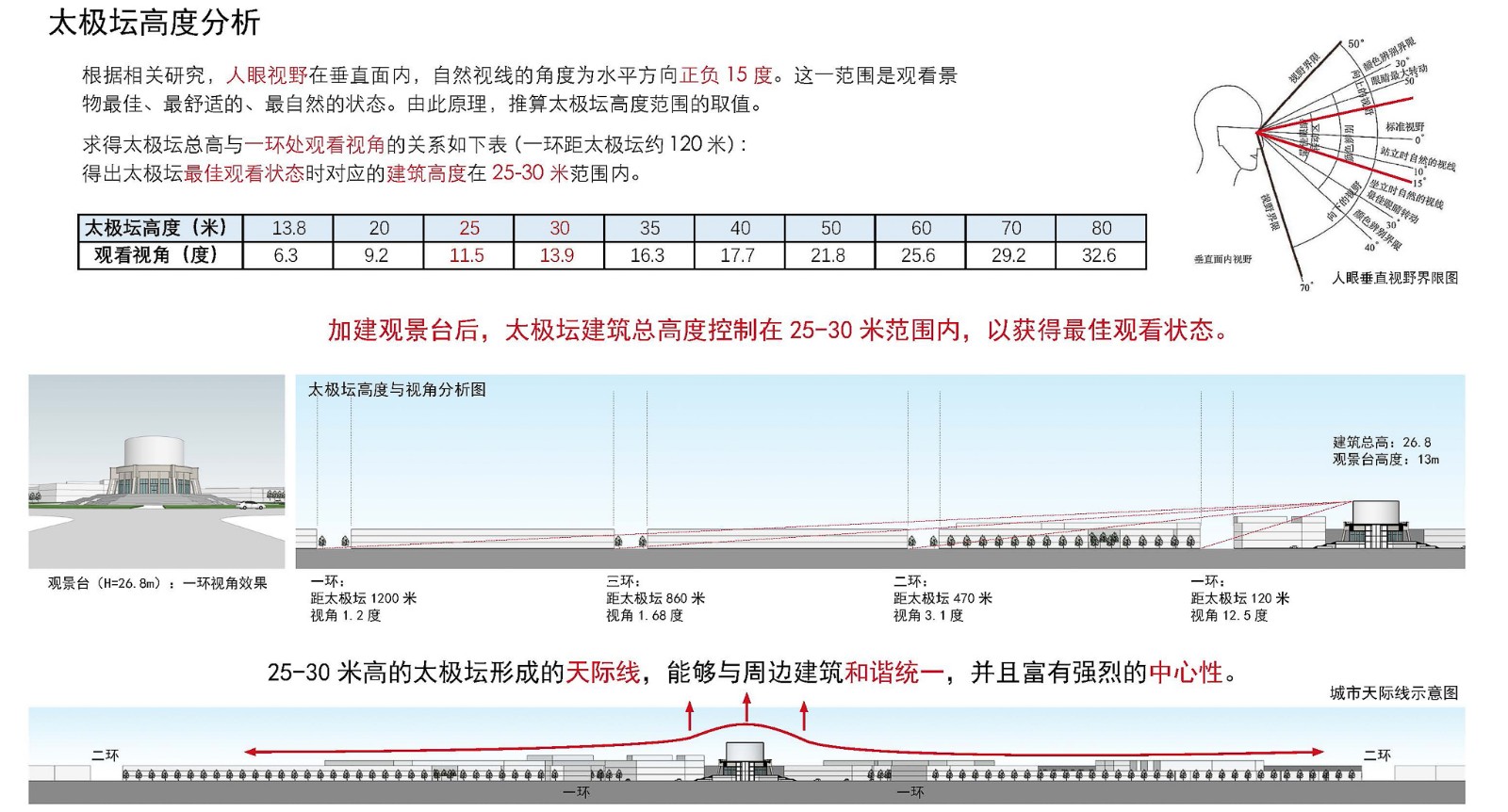

设计并没有追求高度形成“塔”的城市图谱,而用道家传统中“坛”的概念,通过视线分析,用八个方向的模块,经过折叠、提升形成上部开放的城市空间。人们在上升中视线不断变换,并与城市八条放射状道路相呼应。这里成为俯瞰八卦城的核心公共场所。设计运用易经中的数理作为设计的参照,给平面化的数理增加了三维尺度,深化了易经文化。

Renovation of Tekesi Tai Chi Altar


Tekesi County, also known as the Bagua City, is designed and built according to the Bagua orientation of "Zhou Yi", covering an area of about 10 square kilometers. It is the only "Bagua City" in the world with a regular and complete urban diagram.



The Tai Chi altar is at the central point of the county. It carries the important function of disseminating local culture and providing public living space for local people.

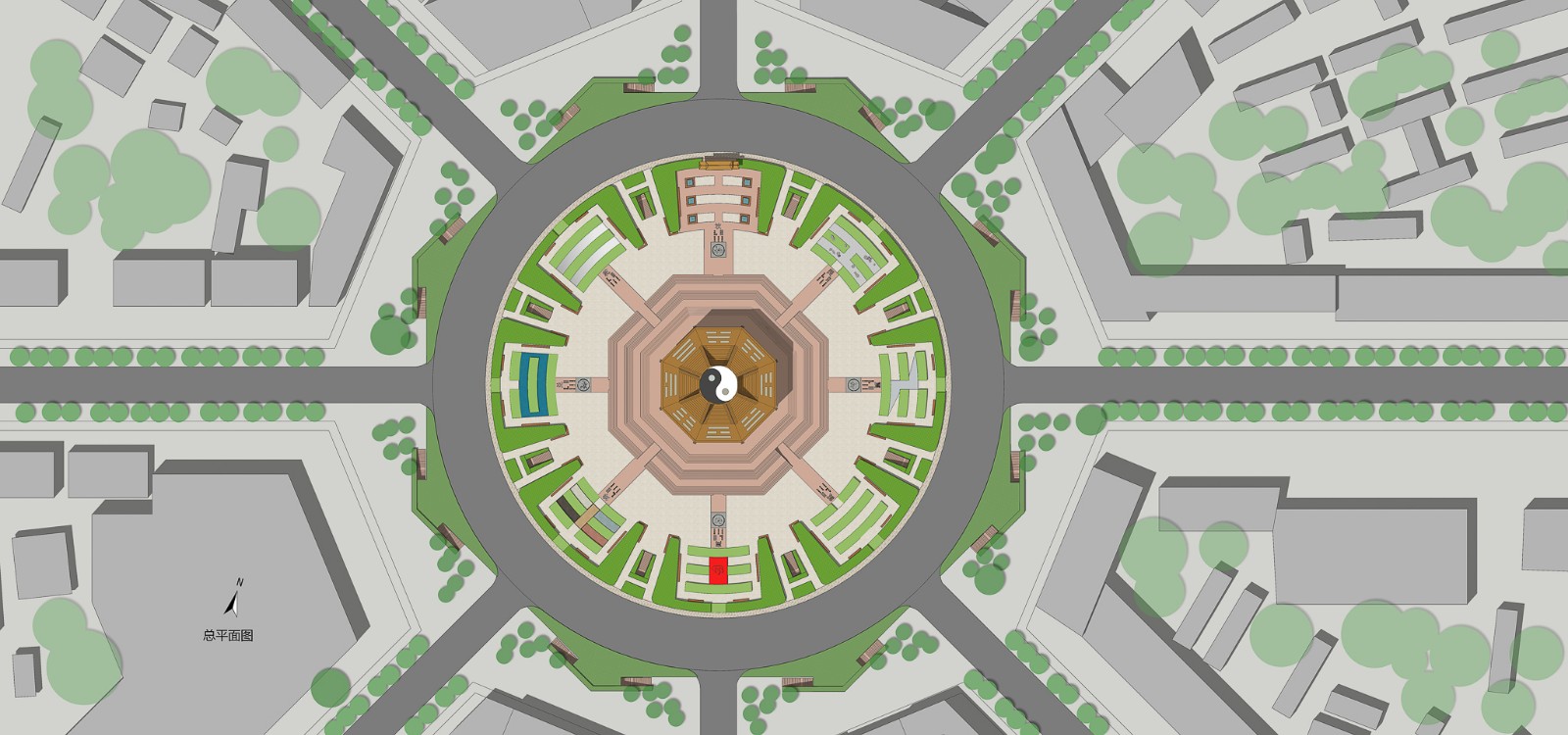

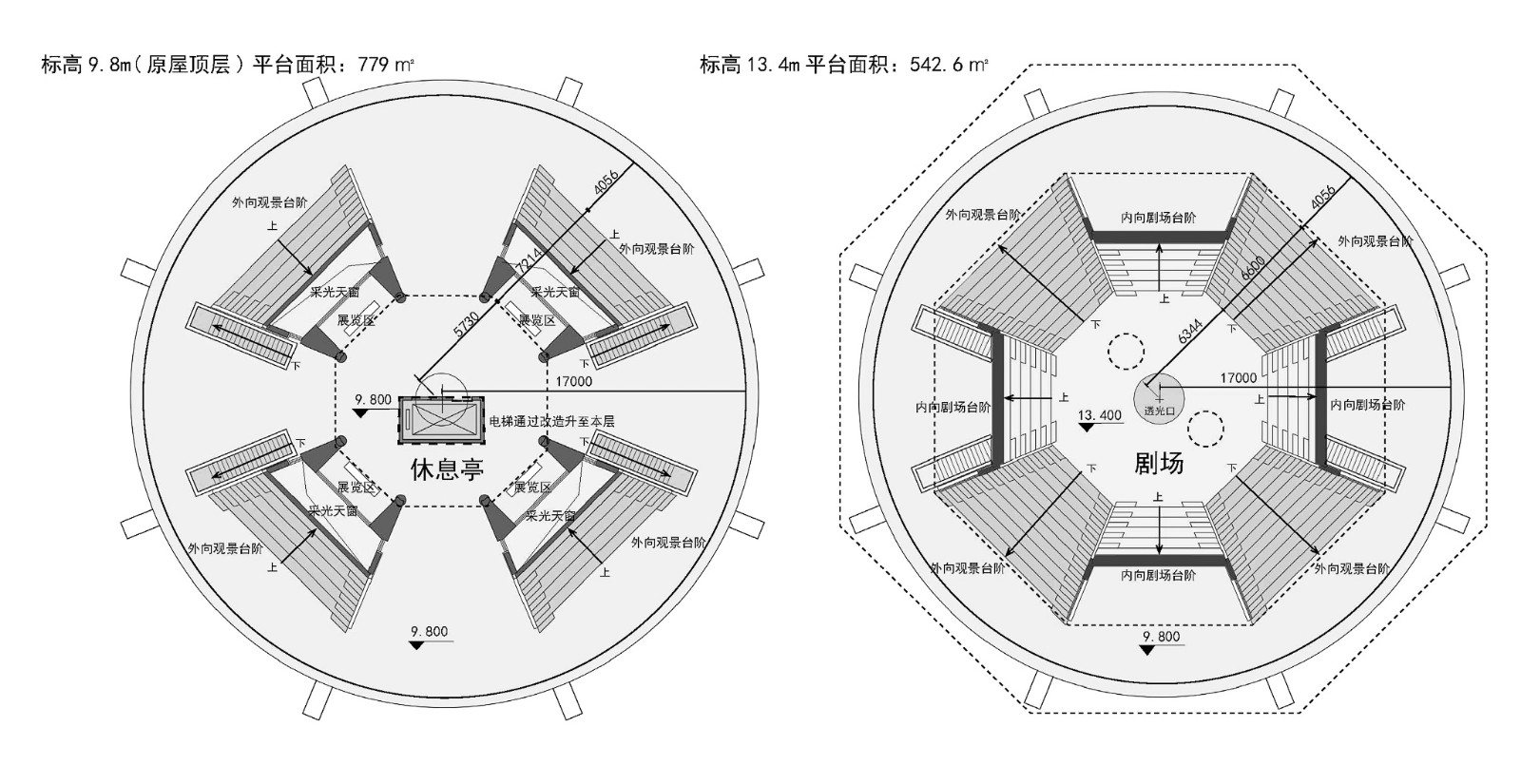

The concept of "altar" in the Taoist tradition is selected instead of a high-level Buddhism tower. By analyzing the sight, the eight-direction modules are folded and left to form an open upper urban space. As people rise, their sights are constantly changing and echoing the eight radial roads in the city. Here becomes the core public place overlooking the Bagua city.



The number of mathematics in the book of Zhou Yi is a reference for design, adding a three-dimensional scale to the planar mathematics, deepening the culture of the Zhou Yi.

项目信息

建设地点:新疆特克斯县

用地面积:17550.9 ㎡

建筑面积:4982.5 ㎡

新增面积:661.2 ㎡

设计时间:2019年

委托方: 特克斯县特峻旅游开发有限责任公司

建筑设计:王浩东 东梅

Project Facts

Location:Tekesi County,Xinjiang Autonomous Region

Land Area:17,550.9 ㎡

Building Area:4,982.5 ㎡

Newly added area: 661.2 ㎡

Designed:2019

Client:Tekesi County Tejun Tourism Development Co., Ltd.

Architect:Wang Haodong, Dong Mei
