生态厕所

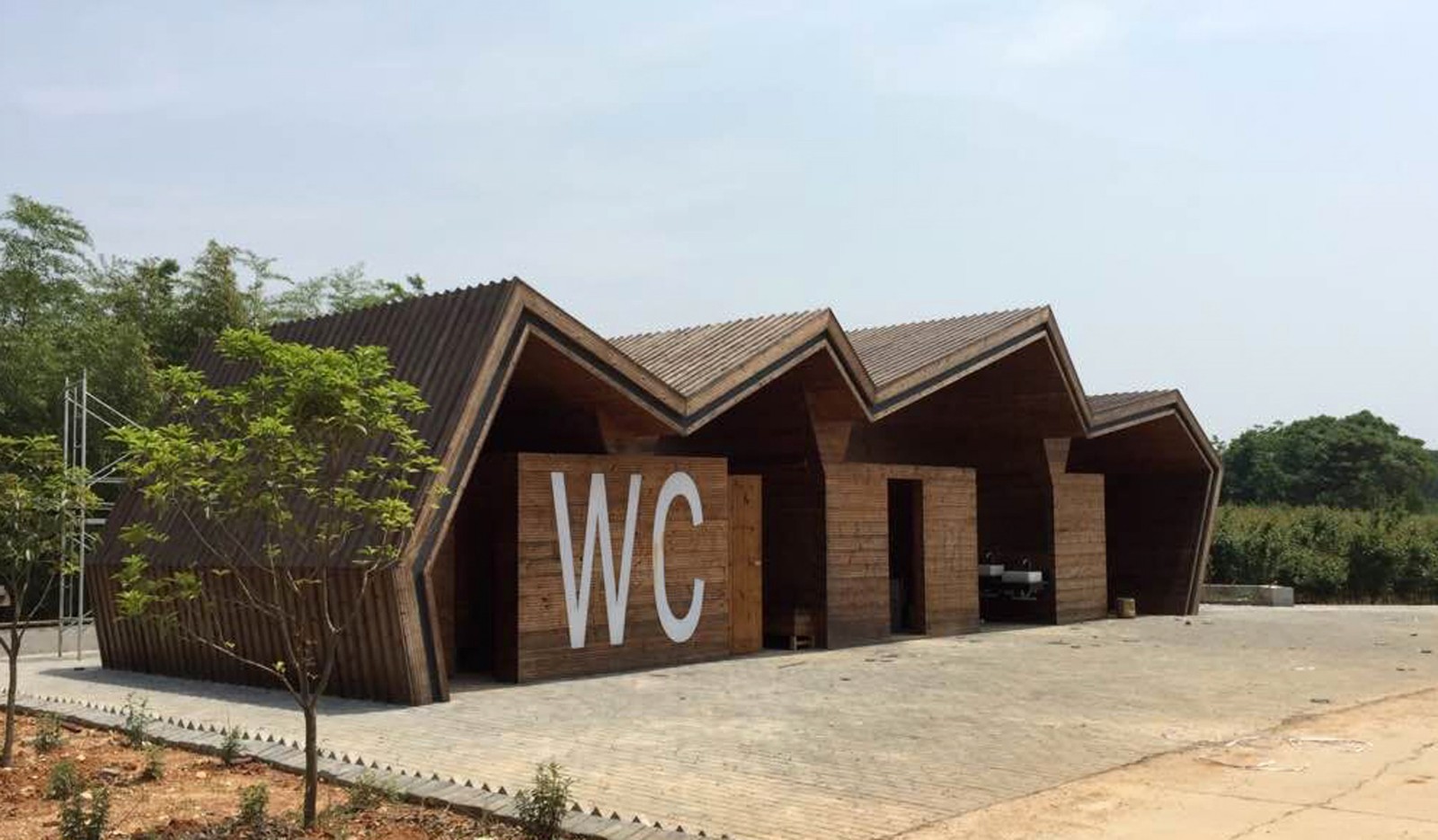

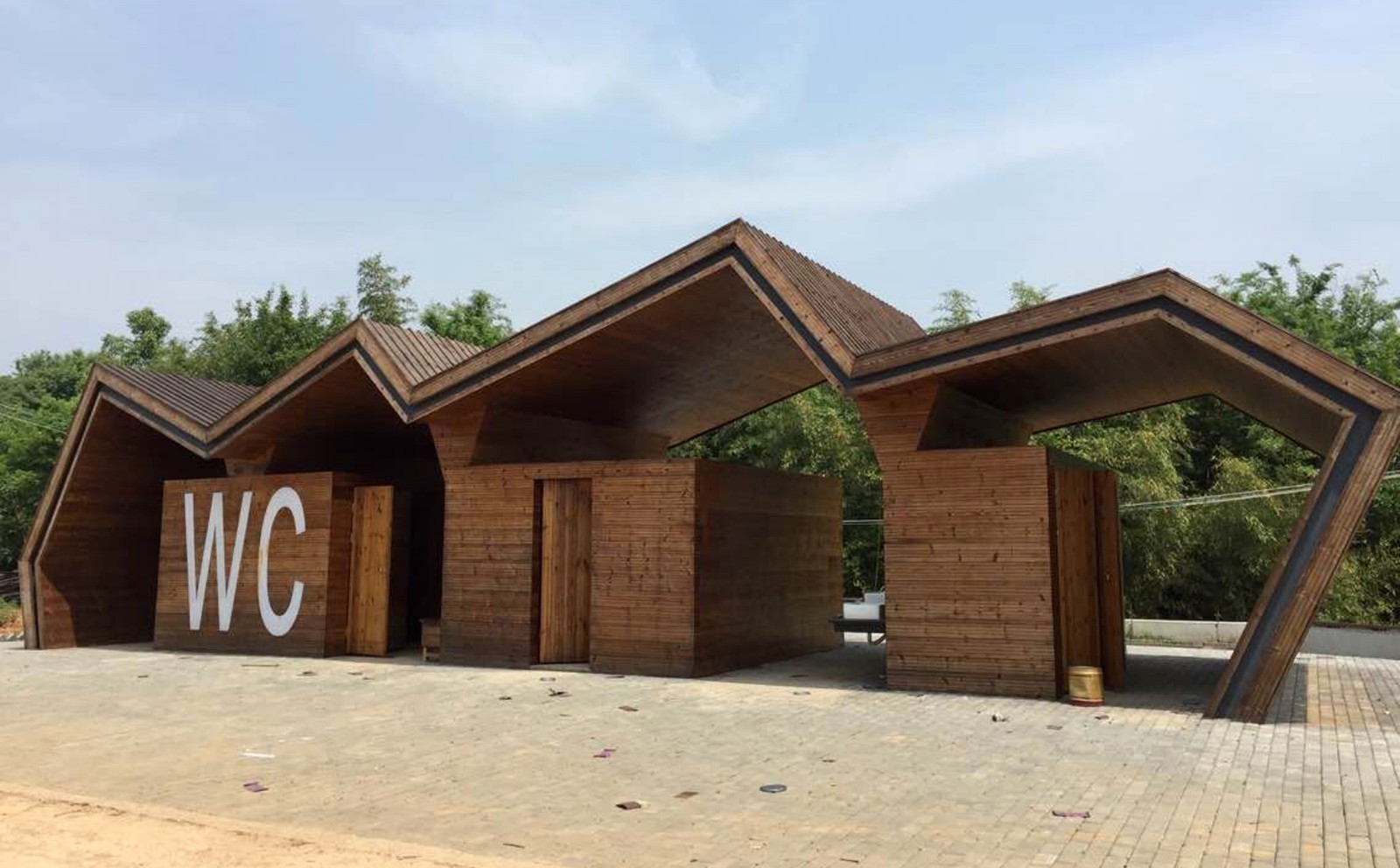

别处空间在武汉薰衣花田设计的自循环生态厕所中,与瑞典的科技团队合作,从人的行为模式、当地气候的适应性,建筑材料的可持续性、科技的运用等方面入手,提供成套的解决方案。

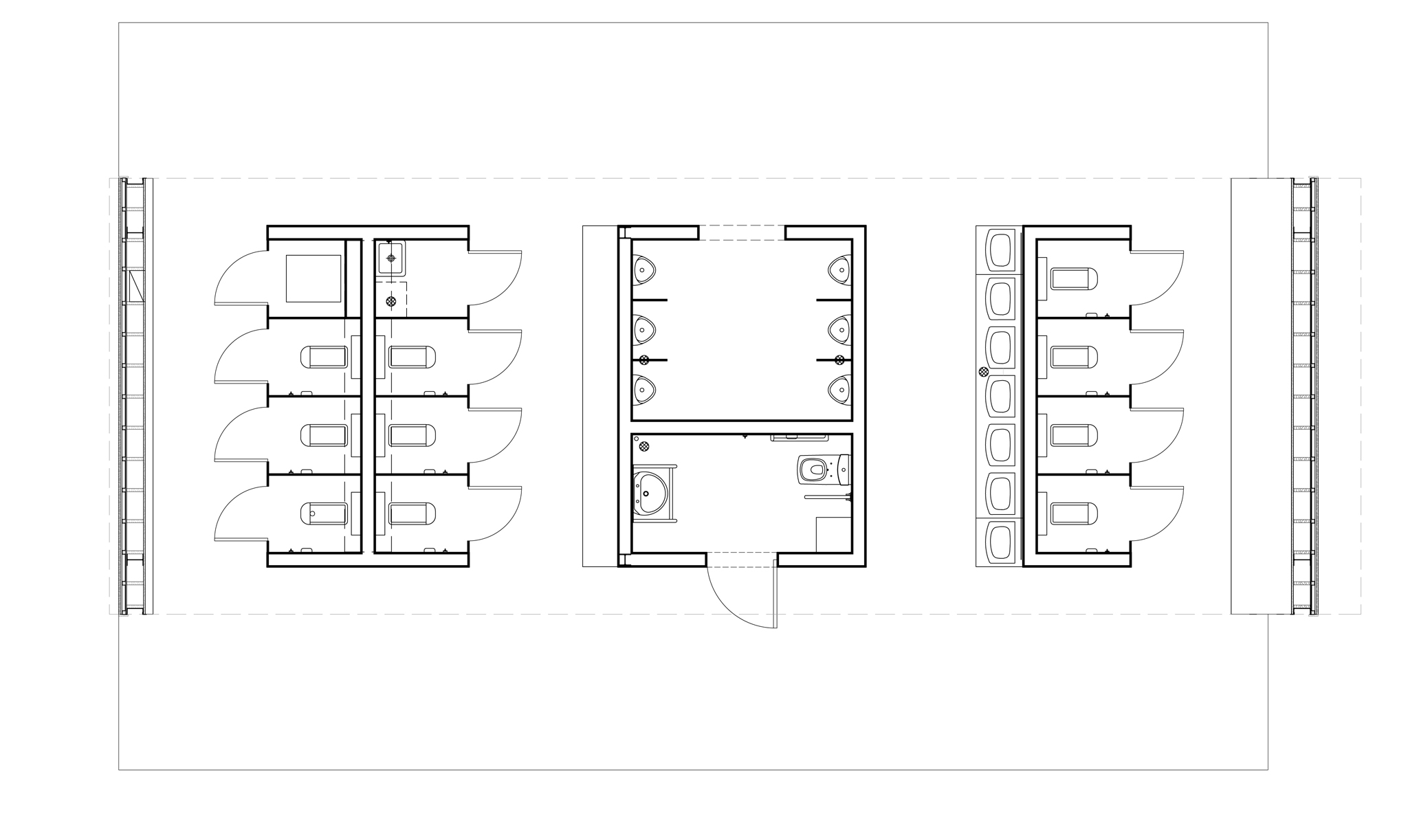

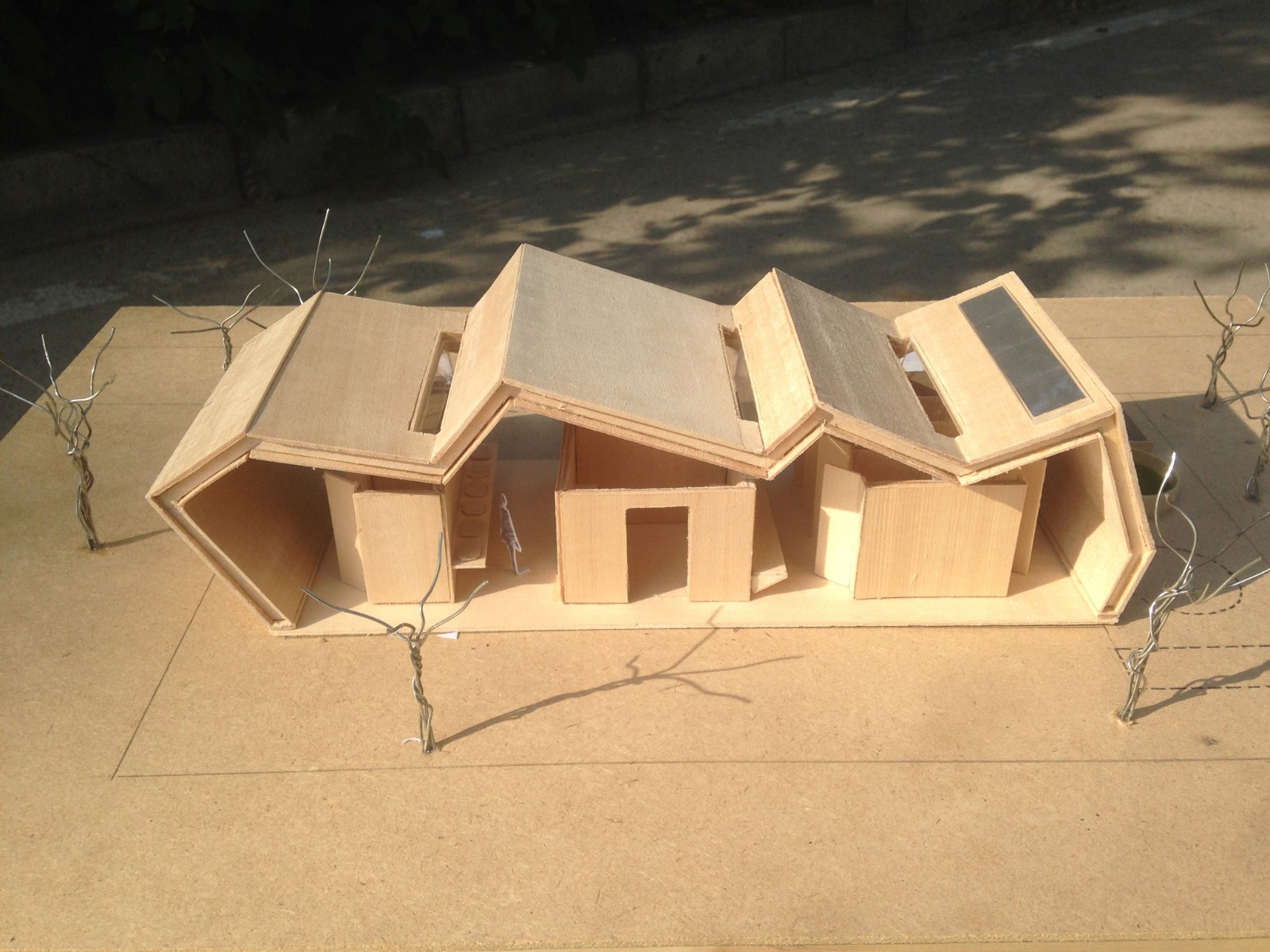

基本单元模块化,适应不同的规模。男女厕位通用,提高如厕效率,避免诸如“占领男厕所”事件的尴尬。单独设置了周转率高的男子小便区。

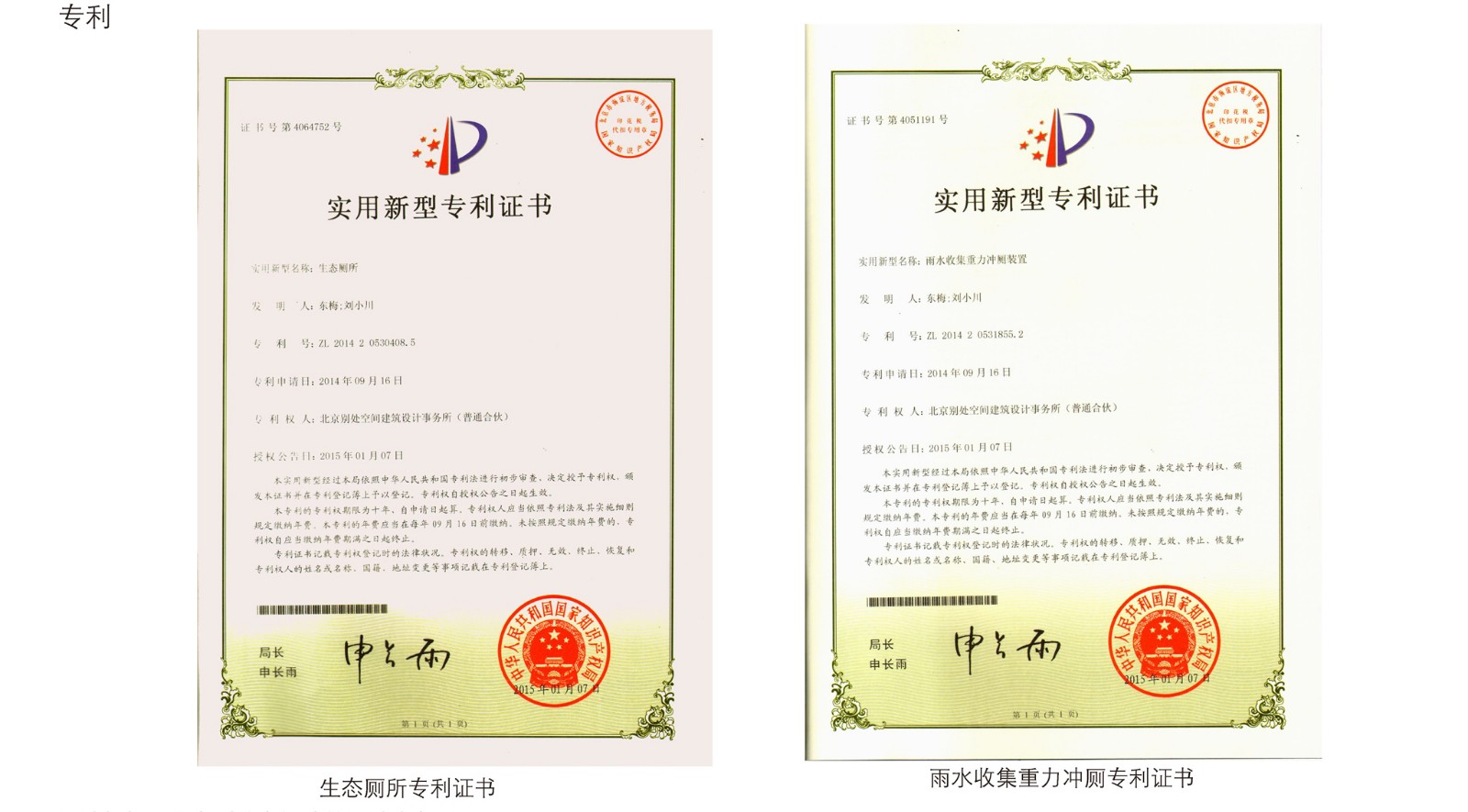

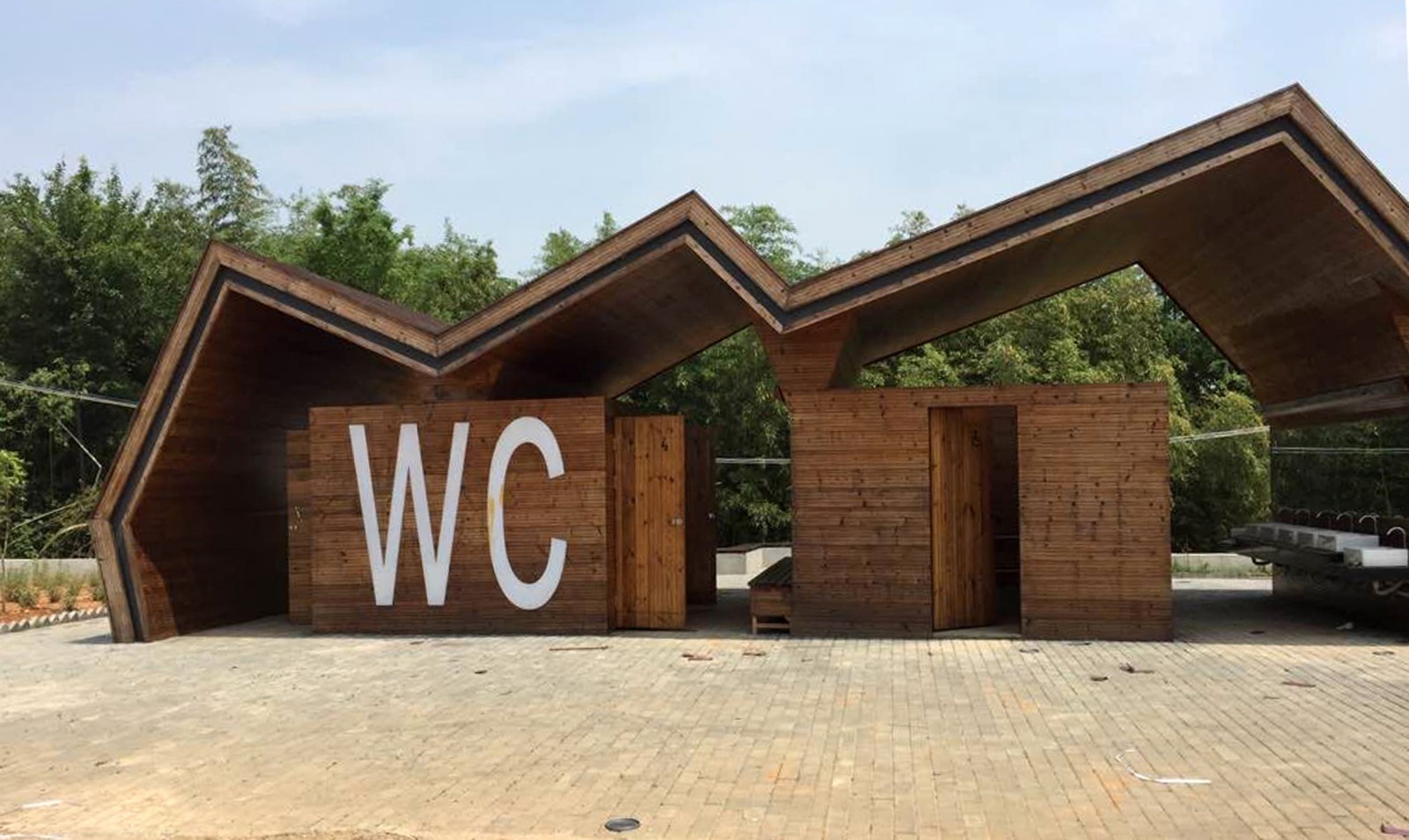

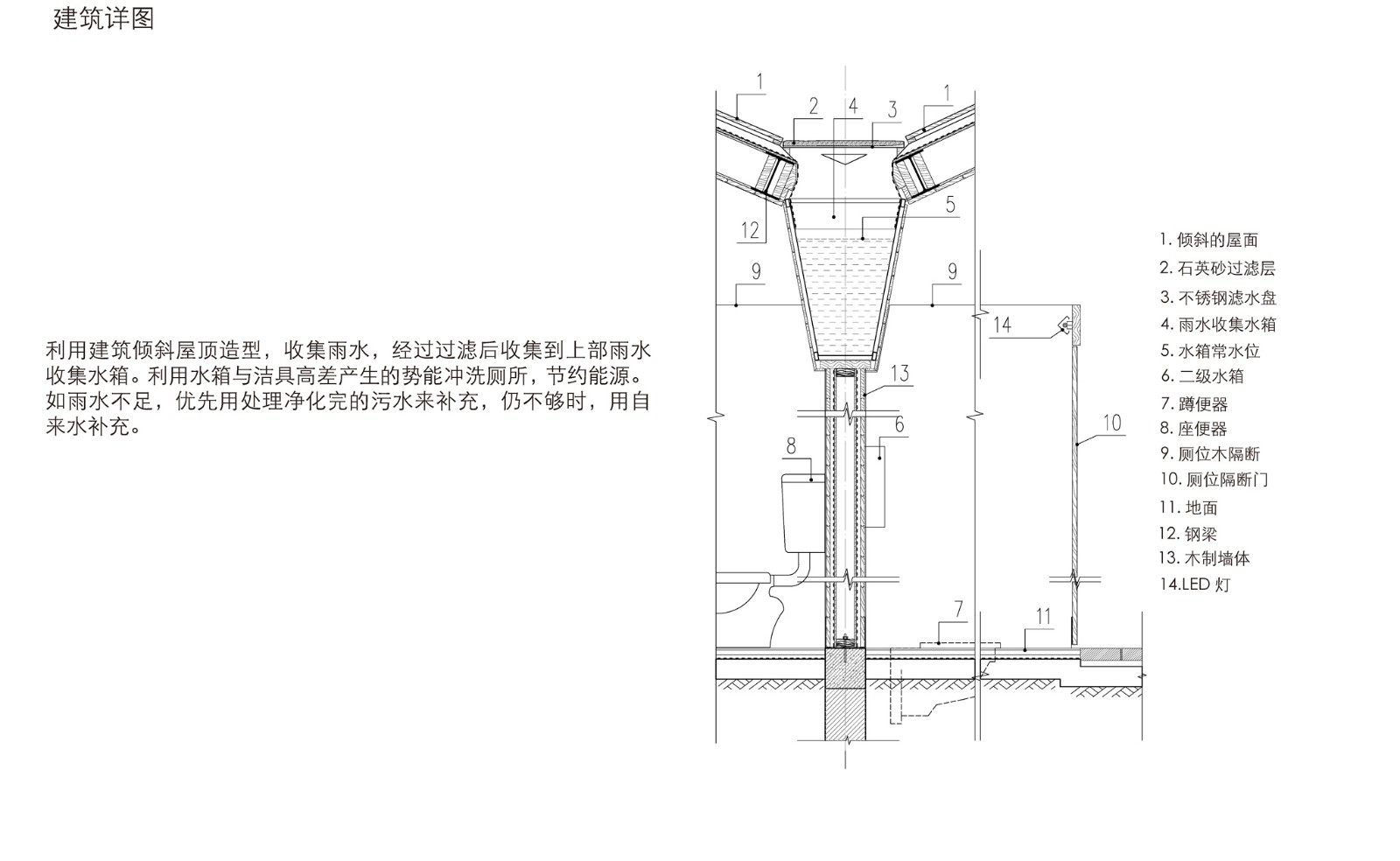

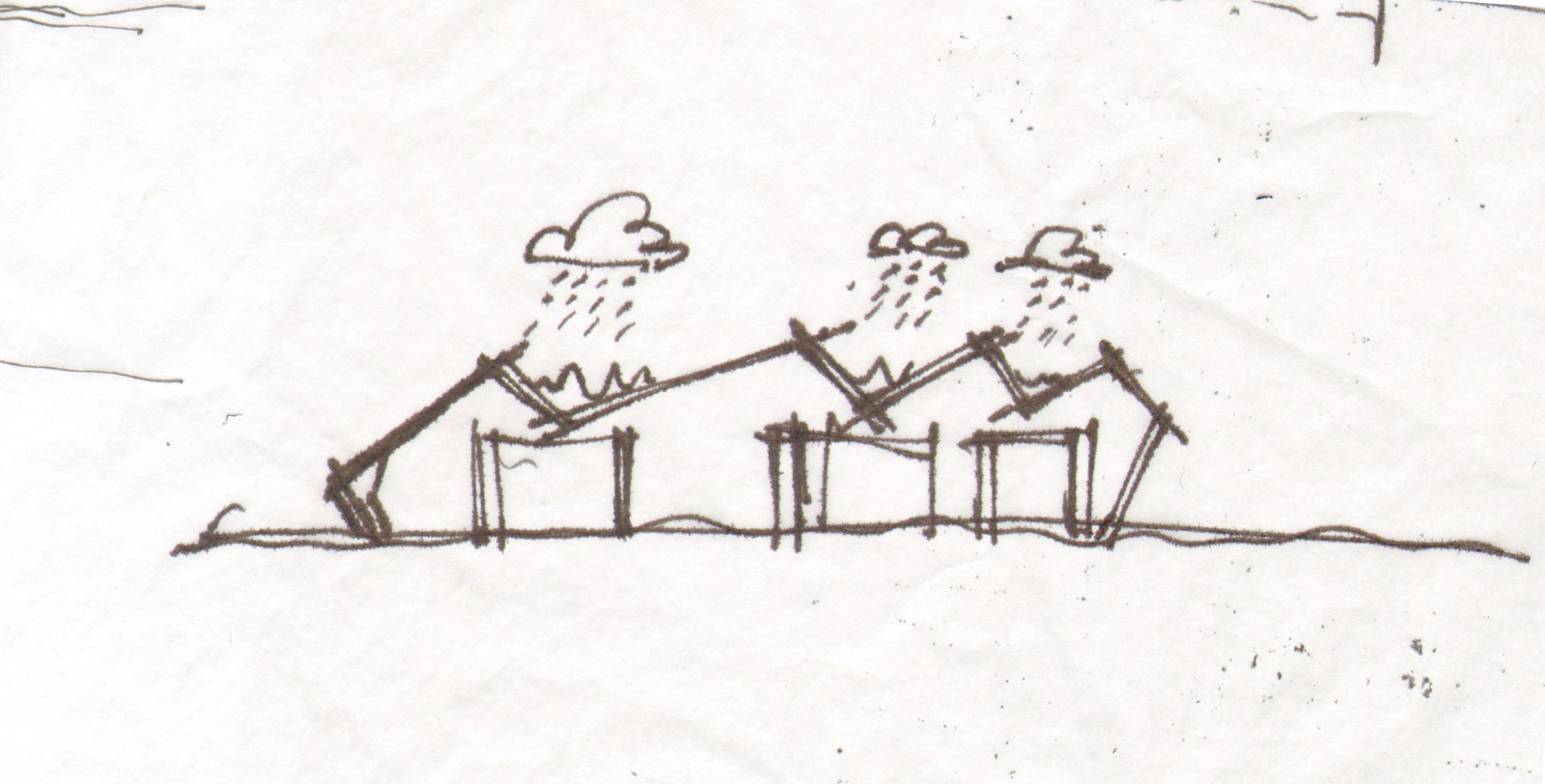

倾斜的屋顶,收集雨水。雨水经过过滤槽后,汇集到屋顶下部的雨水收集水箱。利用水箱与洁具高差产生的势能冲洗厕所。所有厕所用水经过净化后得到的干净水再供厕所使用,形成水资源的循环。别处空间的这项技术获得国家实用新型专利。


瑞典生产的在地污水处理系统是两个简单的罐罐,能将厕所污水处理成干净水,其洁净度达到世卫组织洗手水标准。

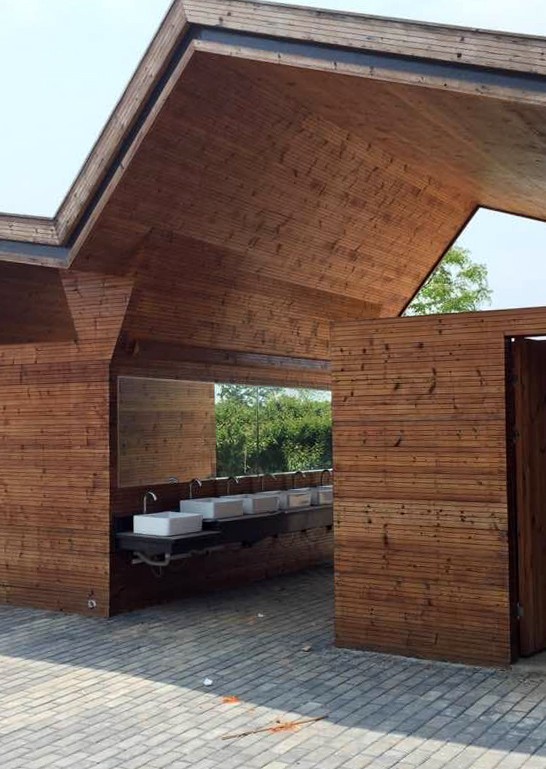

为了防止鸟类撞击镜子而受伤,特别注意将镜子藏在建筑内侧。

Eco-Toilet


A self-recycling ecological toilet designed by BCKJ and the Swedish team in lavender fields in Wuhan. It provides a complete solution based on human behavior patterns, the adaptability of the local climate, the sustainability of building materials, and the use of technology.



The basic modular unit can adapt to different scales. The men's and women's toilets are universal, which improves toilet efficiency and avoids embarrassment such as the "occupation of men's toilets" incident. The men's pee area is set separately and has a high turnover rate.

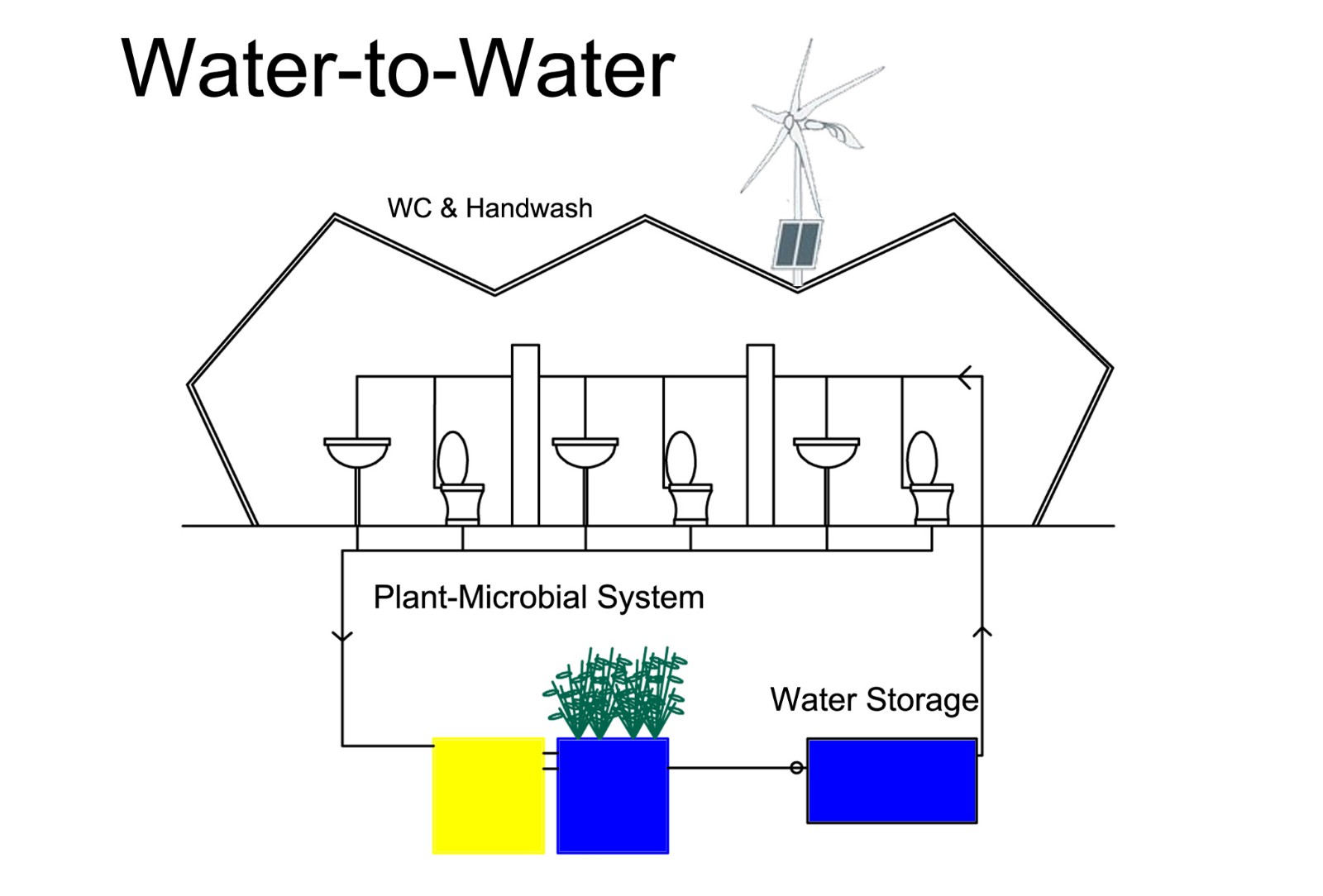

The sloping roof collects rainwater. A collection tank at the lower part of the roof stores the rainwater after filtering. The potential energy generated by the height difference between the water tank and the sanitary ware is used to flush the toilet. Water obtained from all toilet water is purified and then back to flushing toilets, forming a water to water recycle. BCKJ’s technology has won national utility model patents.



Sweden sewage treatment system is two simple tanks which turn the toilet sewage into clean water, and the cleanliness reaches the WHO hand washing standard.



Hiding the mirror inside the building prevents birds from accidentally hitting the mirror and being injured.

项目信息

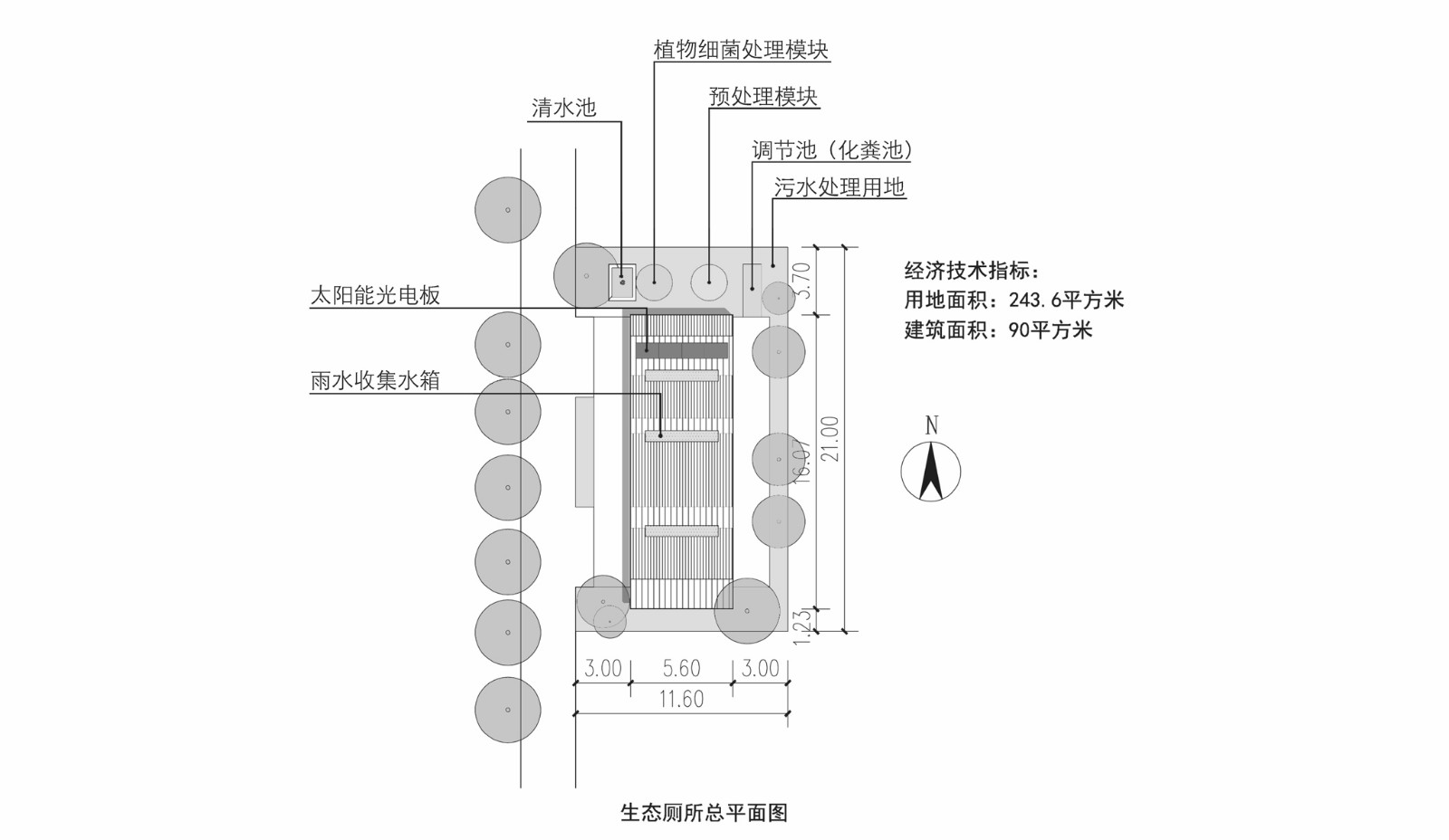

建设地点:武汉江夏区

用地面积:243.6 ㎡

建筑面积:90 ㎡

设计时间:2014年

竣工时间:2015年

委托方: 武汉阳夏绿洲农业产业有限公司

建筑设计:东梅 刘小川

结构设计:高英赫

机电顾问:瑞典 DELTAte Torkel Andersson, Anders Nyquist, Karin Nyquist

机电设计:孟庆伟 王娟

Project Facts

Location:JIangxia District, Wuhan

Land Area:243.6 ㎡

Building Area:90 ㎡

Designed:2014

Completed:2015

Client:Wuhan Yangxia Luzhou Agricultural Industry Co., Ltd.

Architect:Dong Mei, Liu Xiaochuan

Structural:Gao Yinghe

MEP Consultants: Sweden DELTte,Torkel Andersson, Anders Nyquist, Karin Nyquist

MEP Engineering:Meng Qingwei, Wang Juan
